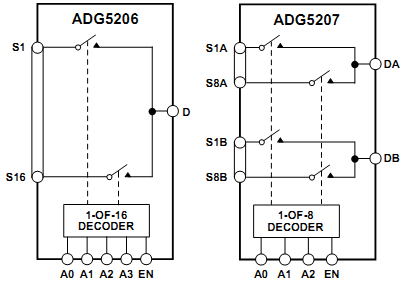

 | | ADG5206 and ADG5207 Multiplexers for Industrial, Instrumentation and Process Control Applications.
Two new multiplexers able to guarantee latch-up prevention in high-voltage industrial applications.
Both the ADG5206 and ADG5207 are available now in 28-lead TSSOP & LFCSP package. |
Features
- Trench isolation between N-ch and P-ch transistors of each CMOS Sw. provides guaranteed latch-up protection
- 3.5 pF off source capacitance
- 64 pF off drain capacitance
- 0.35 pC typical charge injection
- Low on resistance: 155 Ω typical
- ±9 V to ±22 V dual-supply operation
- 9 V to 40 V single-supply operation
- VSS to VDD analog signal range
- Human body model (HBM) ESD rating
- 8 kV I/O port to supplies
- 2 kV I/O port to I/O port
- 8 kV all other pins
|
| | |
