Analog Devices, Inc - Isolated ADC - Energy Meter Magnetic Immunity - 10 October 2012

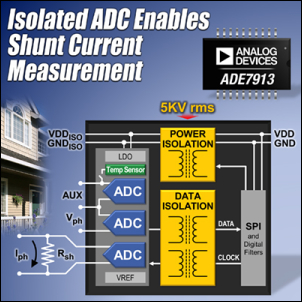

ADE7913: 3-Channel, Isolated, Sigma Delta ADC with SPI

The ADE7913 is isolated three-input channel, analog to digital converter (ADC) for polyphase energy metering applications using shunt current sensors.

  Product page  Datasheet

    Key Features
  • Three 24-bit isolated A/D converters: one current channel and two voltage channels
  • Integrated isoPower® isolated dc-to-dc converter
  • Up to four ADE7913 energy metering ICs synchronously clocked from a single crystal or an external clock
  • On-chip temperature sensor
  • Integrated voltage reference and voltage regulator
  • SPI serial interface
  • The ADE7913/ADE7912 can be clocked from a crystal or an external clock signal. To minimize the system's bill of materials
