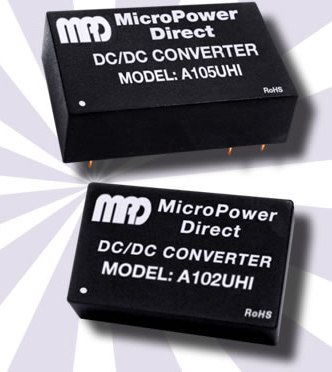

MicroPower Direct LLC - 1W, Low Cost, Ultra-High Isolation DC/DC Conv - 25 October 2012

MPD's A100UHI Series 1W, Low Cost, Ultra-High Isolation DC/DC converters.

  Product page  Datasheet

    Key Features & Specs
  • 1W Output Power
  • 12V Input
  • Compact DIP Case
  • Low Isolation Capacitance
  • Short Circuit Protected
  • High Efficiency
  • Ultra-High 12 kV Isolation
  • >1.0 MHour MTBF
  • -40°C to +85°C Operation
  • Meets EN 55022 B
  • Meets EN 61000-4-2,3,4,5,6,8,11
  • 37mm x 23mm DIP Case

  • The model line-up is as follows:
    ModelInput Voltage (Nominal)Input Voltage (Range)Output VoltageOutput CurrentEfficiency
    A102UHI12 VDC±10%12 VDC83 mA78%
    A105UHI12 VDC±10%±12 VDC±41.6 mA78%
