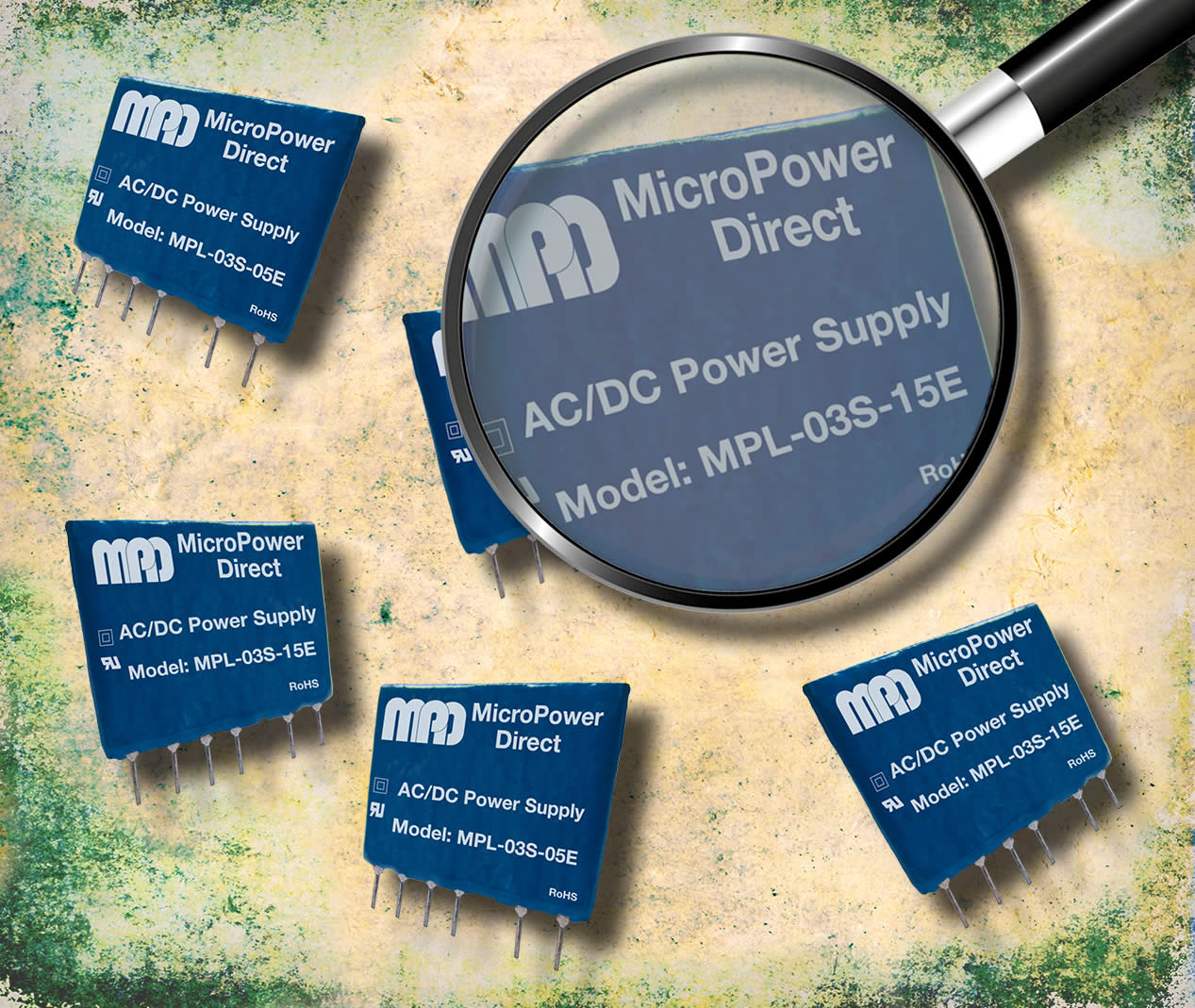

MicroPower Direct LLC - Miniature, Safety Approved 3W AC/DC Power Supplies - 31 October 2012


MPL-03SE series miniature, 3W SIP EN 60950 approved AC/DC power supplies designed specifically for space critical board level applications.


  Product page  Datasheet


    Key Features
  • 3W Output Power
  • Universal 85-264 VAC Input
  • Ultra-miniature SIP Case
  • EN60950 Approved (UL)
  • Meets IEC Safety Class II
  • Single Regulated Output
  • Meets EN 55022 Class A
  • >300 kHour MTBF
  • -40°C to +85°C Operation
  • Meets EN 61000-4-2,3,4,5,6,8,11
  • 35mm x 11mm x 23mm SIP Case
  • Input/output isolation of 3,000 VAC
  • Five standard models



  • The model line-up is as follows:
    Model NumberOutput VoltageOutput Current
    MPL-03S-05E5 VDC500 mA
    MPL-03S-09E9 VDC333 mA
    MPL-03S-12E12 VDC250 mA
    MPL-03S-15E15 VDC200 mA
    MPL-03S-24E24 VDC125 mA
